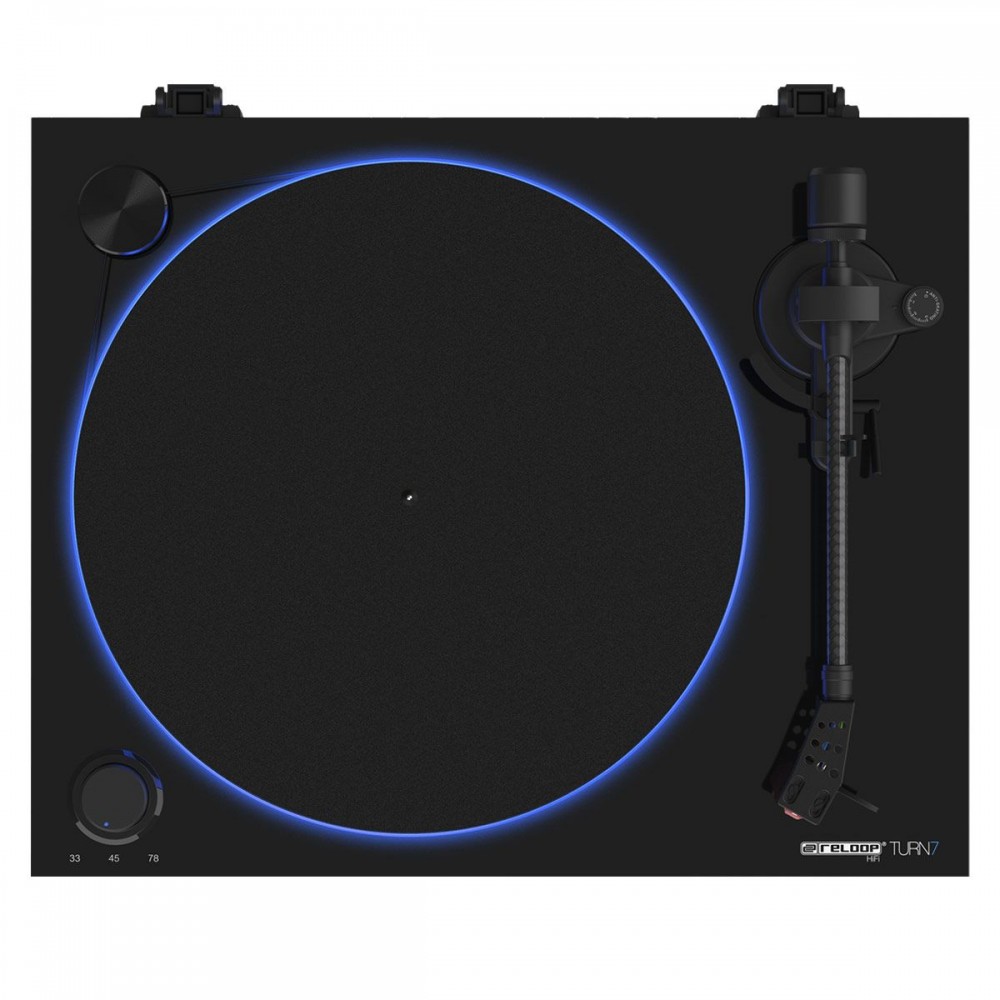

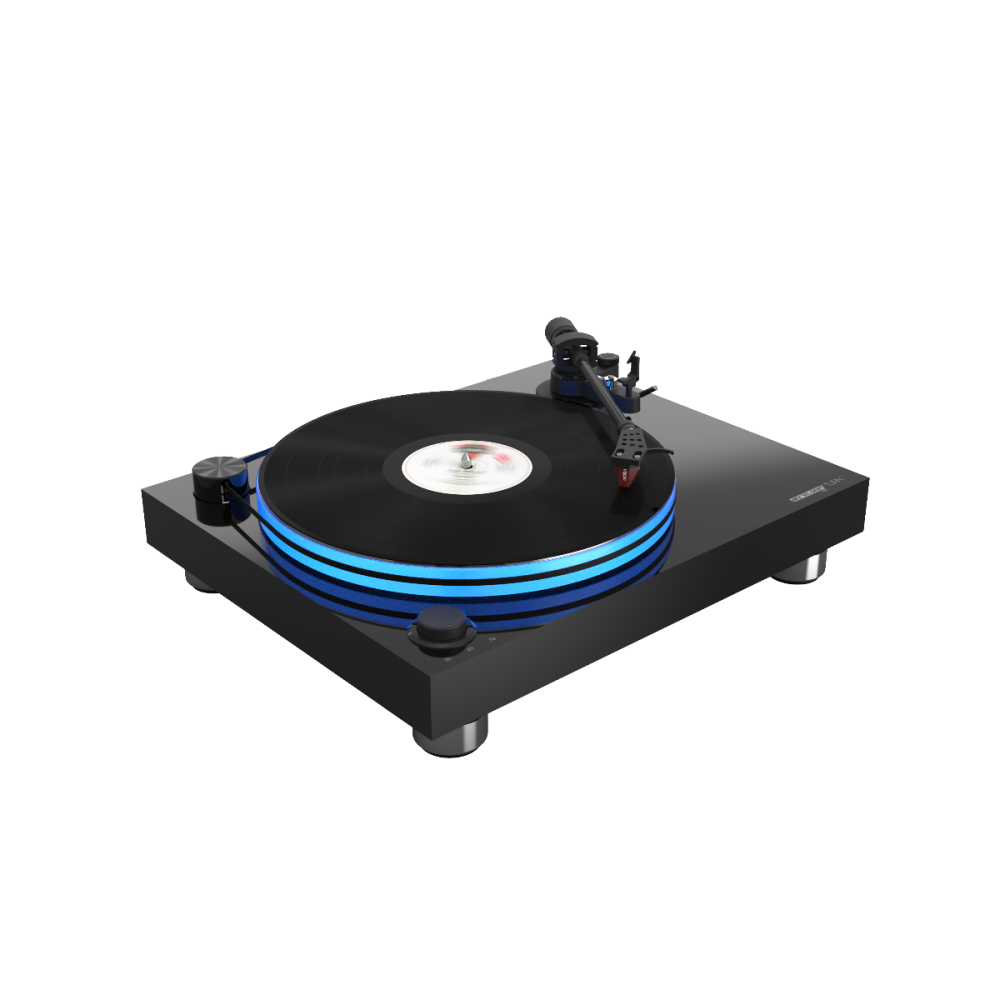

RELOOP Turn 7

Il Turn 7 colma il divario tra i giradischi HiFi di fascia alta e il design senza compromessi. Il giradischi con trasmissione a cinghia soddisfa le elevate esigenze degli appassionati di musica audiofila grazie a componenti realizzati con precisione. Il piatto in acrilico con illuminazione a LED e la cinghia di trasmissione esterna rendono il Turn 7 un vero colpo d'occhio.

Caratteristiche Tecniche:

• Type of turntable: Belt-Driven manual Turntable System with USB Interface
• Drive: Belt drive
• Motor: DC Motor
• Rotation speeds: 33 1/3, 45 RPM
• Starting Torque: //
• Start-up time / rpm change: //
• Wow and Flutter: 0,2% WRMS
• S/N Ratio: >45dB or higher
• Breaking System: Manually

Turntable Platter:

• Turntable Platter: Acrylic glass
• 300 mm diameter
• Weight About 1.7 kg

Tonearm Section:

• Type: Straight Tonearm
• Effective Length: 223.6 mm
• Effective Tonearm Mass: 18.5g
• Overhang: 18.61 mm
• Tracking Error Angle: ±1.5°
• VTA Adjustment Range: - 2 ~ 4 mm
• Applicable Cartridge Weight: 7.2 ~ 11.2 g (incl. Headshell)
• Anti-Skating Range: 0 - 4 g

Cartridge:

• Ortofon 2M Red
• Output voltage at 1000 Hz, 5 cm/sec.: 5.5 mV
• Channel balance at 1 kHz: 1.5 dB
• Channel separation at 1 kHz: 22 dB
• Channel separation at 15 kHz: 15 dB
• Frequency response: 20-20.000 Hz + 3 / - 1 dB
• Tracking ability at 315Hz at recommended tracking force: 70 µm
• Compliance, dynamic, lateral: 20 µm/mN
• Stylus type: Elliptical
• Stylus tip radius: r/R 8/18 µm
• Tracking force range: 1.6 - 2.0 g (16-20 mN)
• Tracking force, recommended: 1.8 g (18 mN)
• Tracking angle: 24.7°
• Internal impedance, DC resistance: 1.3 kOhm
• Internal inductance: 700 mH
• Recommended load resistance: 47 kOhm
• Recommended load capacitance: 150-300 pF
• Cartridge colour, body/stylus: Black/Red
• Cartridge weight: 7.2 g

General:

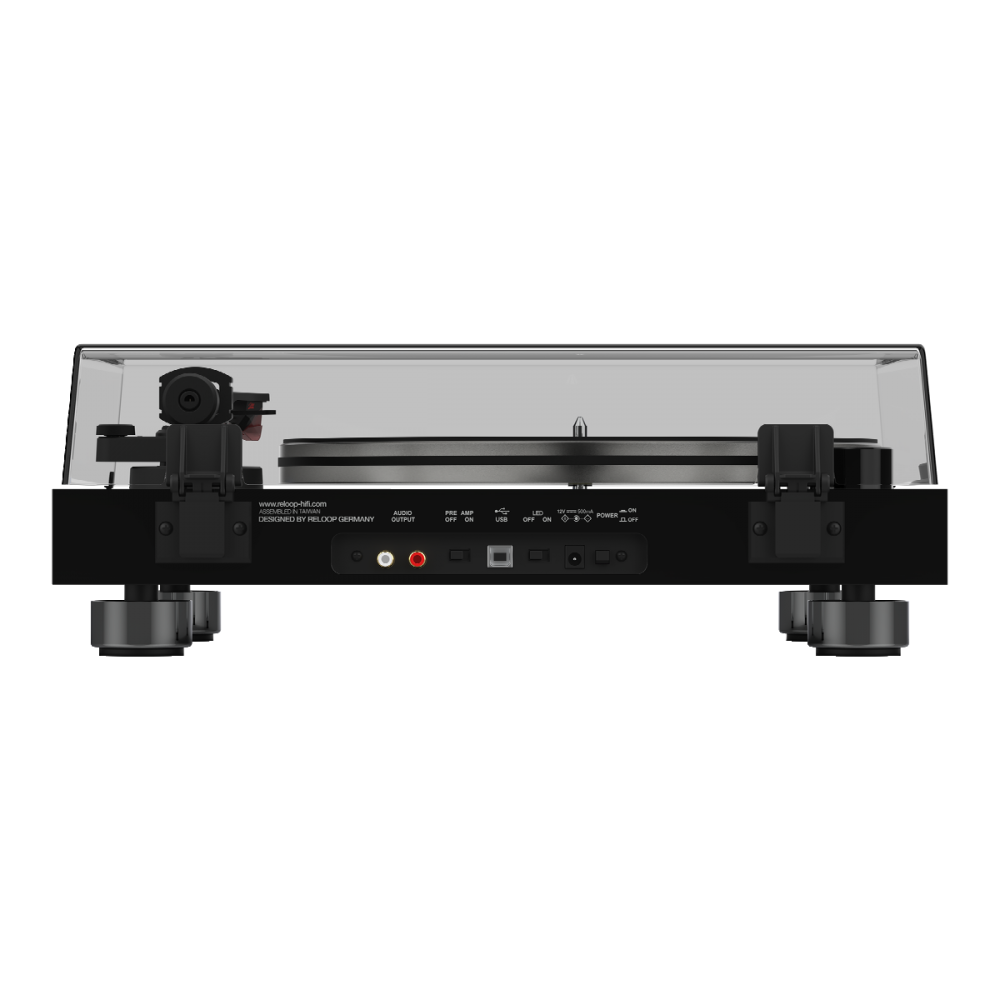

• Terminals: 1x PHONO/LINE Out, Build in Phono Stage (Pre Amp)
• Power Supply: 12 V 1A DC
• Power consumption: 12W
• Dimensions: 420(W) x 356(D) x 148(H) mm
• Weight: 8.2 kg
